Product Features:

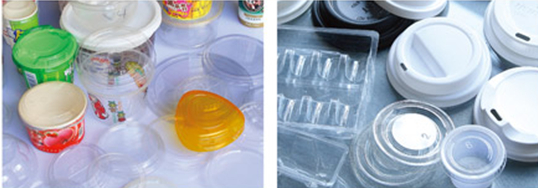

This machine is special designed for automatic forming, hole punching, cutting plastic sheet such as PVC, PS and PET. Machine’s formed product is cup cover, tray and another container. Products are widely used in Food, Medical, Daily use chemical, Metal and ect., industry.
This machine’s operation is simple and convenient, low power consumption, automatic counting.
Machine working flows: This machine fully-automatic running.
Heat forming → Hole punching → Cutting → Product discharging
Main technical data:
|
Cutting Time |
15-30times/min |
|
Power Supply |
380V/220V 50Hz |
|
Feed Distance Range |
40-150mm |
|
Max Forming Area |
450mm×150mm |
|
Max Forming Depth |
46mm |
|
Upper Forming Heating Power |
2.0kw |
|
Under Forming Heating Power |
2.0kw |
|
Motor Power |
1.5kw |
|
Air Pump Pressure |
0.4-0.6Mpa |
|
Air Pump Volume Flow |
≧0.36³/min |
|
Sheet(Thickness x Width) |
0.1-0.6mm×450mm |
|
Dimensions(L x W x H) |
2700mm×1100mm×1700mm |
|
Weight |
1800kg |
